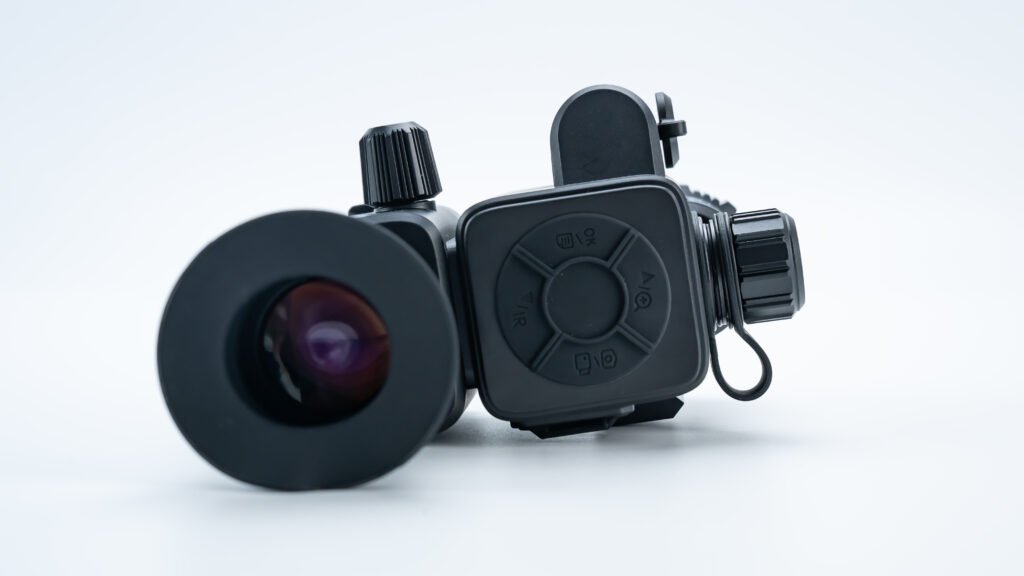

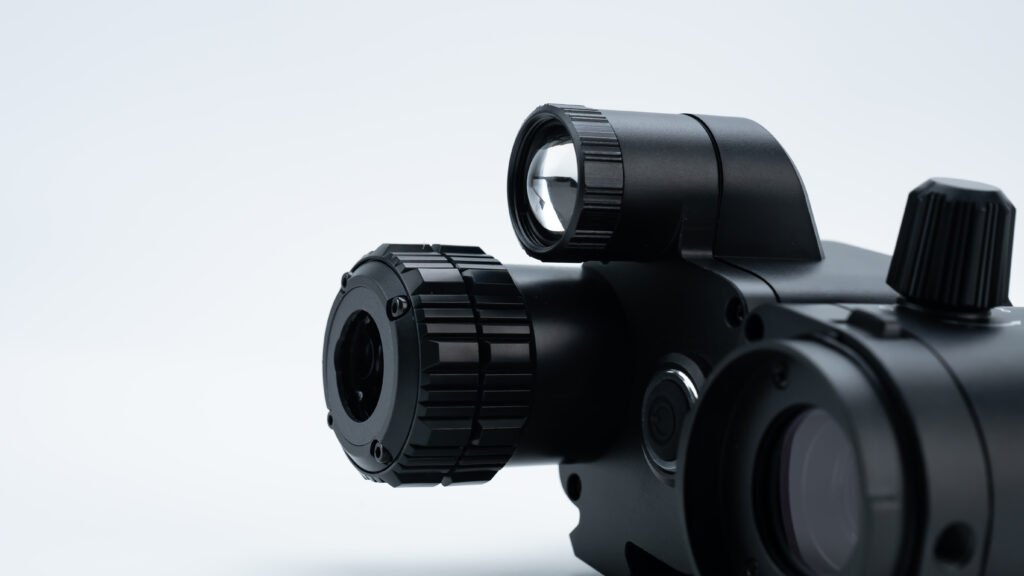

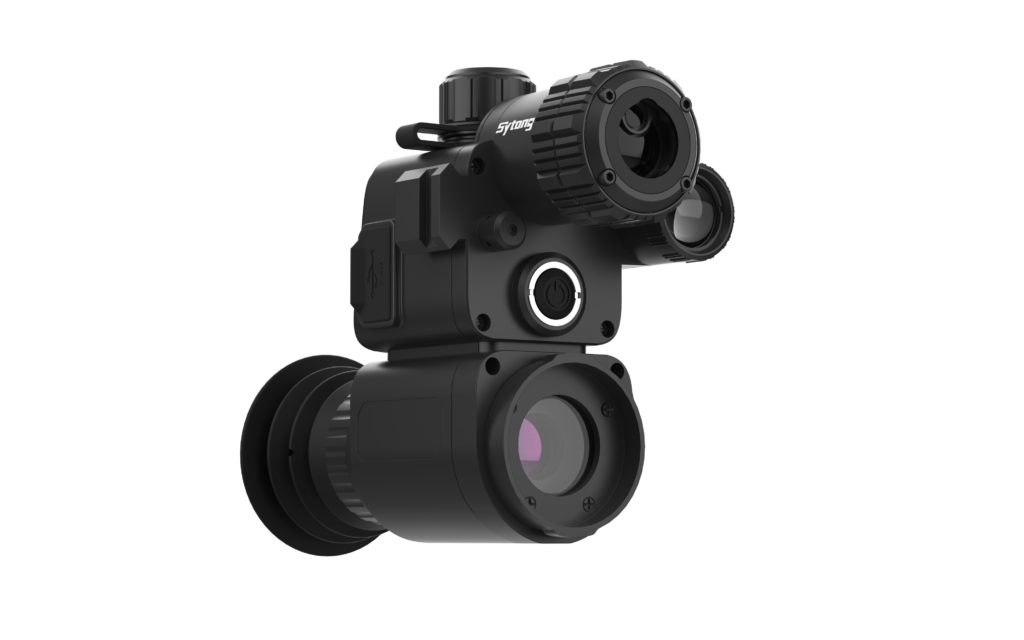

HT-99LRF
Compact night vision monocular with built-in laser rangefinder — 1920×1080 CMOS sensor, 800 m ranging and a 280 g body.
Key Specifications
Sensor: 1920×1080 CMOS
Display: AMOLED 1440×1080
Lens: 16mm
Magnification: 1-3.5x
FOV: 16°x12.5°
LRF: 800m ±1m
Battery: 6h
Weight: 280g · IP66
Reply within 12 hours · OEM / ODM available
Technical Specifications
| Model | HT-99LRF |
| Type | CMOS |
| Resolution | 1920×1080 |
| Objective focal point | 16mm |
| Magnification | 1-3.5x |
| FOV angle | 16° x 12.5° |
| Focal ratio | 1X |
| Eye relief | 30mm |
| Diopter adjustment | +5 / -5 D |
| Focusing range | 0.1m |
| Display | 0.39 inch AMOLED 1440×1080 |
| Infrared wavelength | 850 / 940nm |
| Laser rangefinder | 905nm, up to 800m, ±1m |
| Battery | 18650 / 3200mAh |
| External power | 5V (USB) |
| Operating time | 6 hours at 22°C |
| Video / photo | 1440×1080, mp4 / jpg |
| Memory | TF card (FAT32), up to 128GB |
| Wireless | 2.4GHz, 802.11 b/g, LOS 15m |
| Max recoil | 6000 J |
| Protection rating | IP66 |
| Operating temperature | -20°C to +50°C |
| Weight | 280g |
| Size | 115.4 x 61.55 x 103mm |
