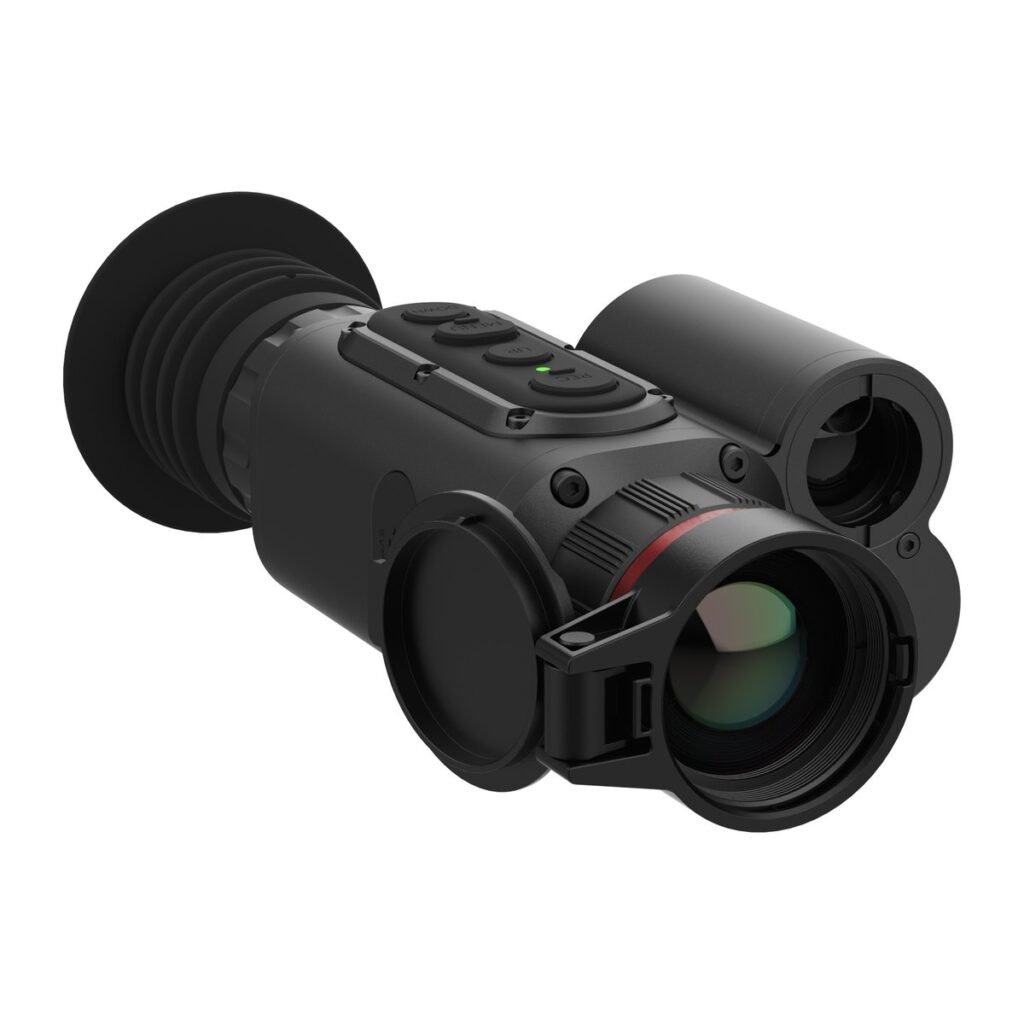

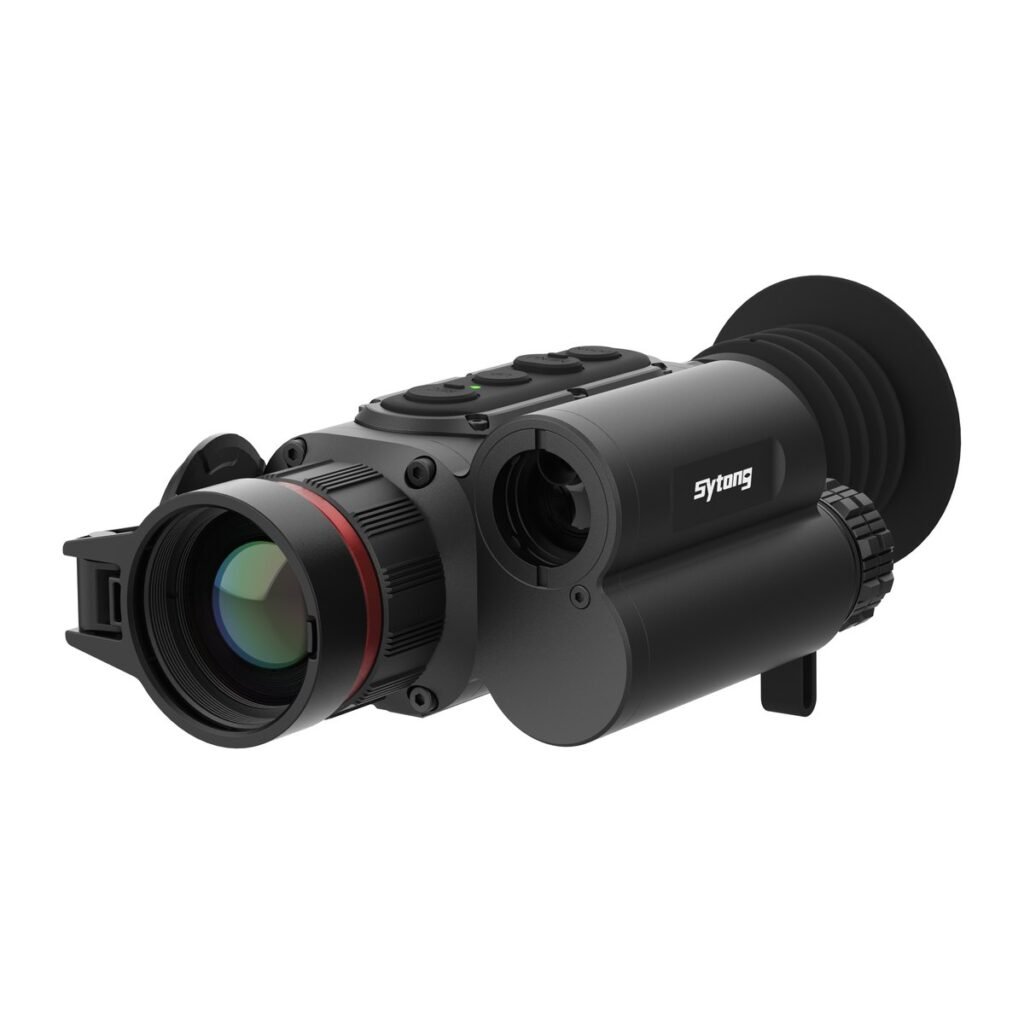

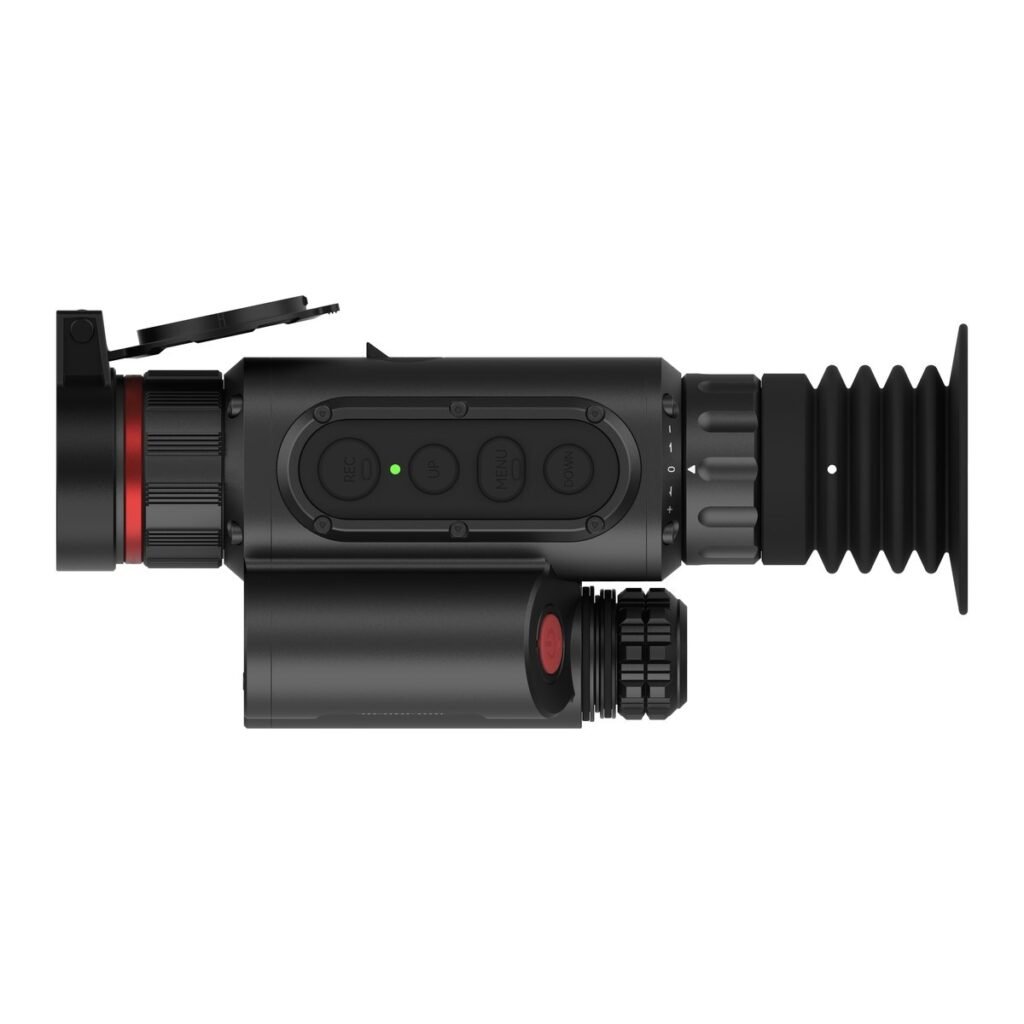

LM02-25LRF
Compact thermal scope with laser rangefinder — 1300 m detection range and 8 hours of runtime at just 465 g.
Key Specifications
Sensor: 256×192 / 12μm
NETD: ≤18mK
Lens: 25mm F1.0
Magnification: 3.56X
Detection range: 1300m · LRF 1000m
Display: OLED 1024×768
Battery: 8h
Weight: 465g · IP67
Reply within 12 hours · OEM / ODM available
Technical Specifications
| Sensor type | Uncooled VOx |
| Resolution | 256×192 |
| Pixel size | 12μm |
| Frame rate | 50Hz |
| NETD | ≤18mK |
| Objective lens | 25mm |
| Field of view | 7° x 5.3° |
| Magnification | 3.56X |
| Digital zoom | 1x / 2x / 4x / 8x |
| Detection range | 1300m (target 1.7m x 0.5m) |
| Laser rangefinder | Up to 1000m |
| Display | 0.39 inch OLED 1024×768 |
| Image modes | White hot / Black hot / Red hot / Fusion / Sky mode |
| Battery | 18650 / 3500mAh |
| Battery life | 8 hours |
| Storage | TF card (max 32GB) |
| Video / photo | 1024×768, mp4 / jpg |
| Weight | 465g (without battery and mount) |
| Dimensions | 186 x 84 x 55mm |
| Operating temperature | -20°C ~ +50°C |
| Protection | IP67 |
