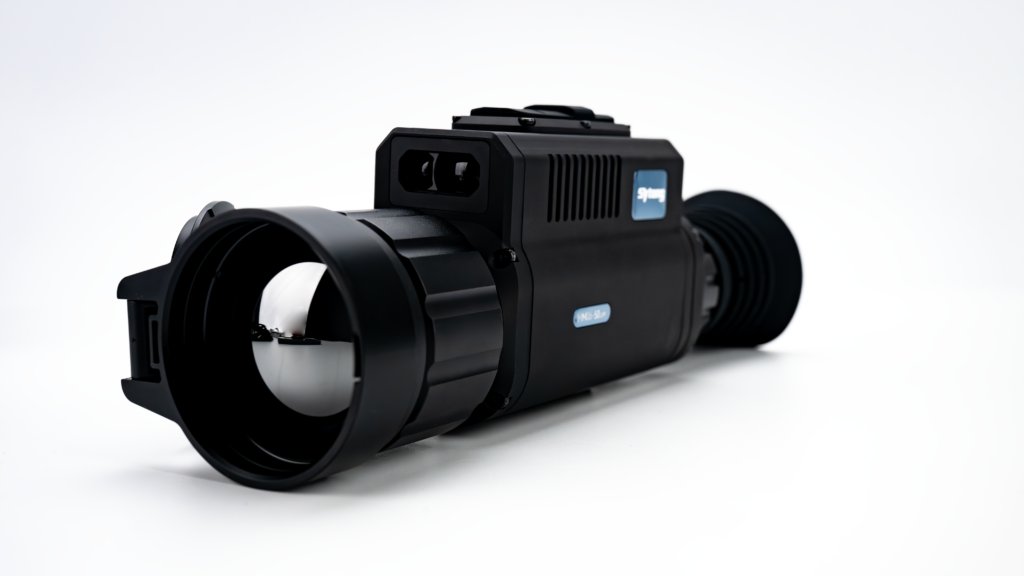

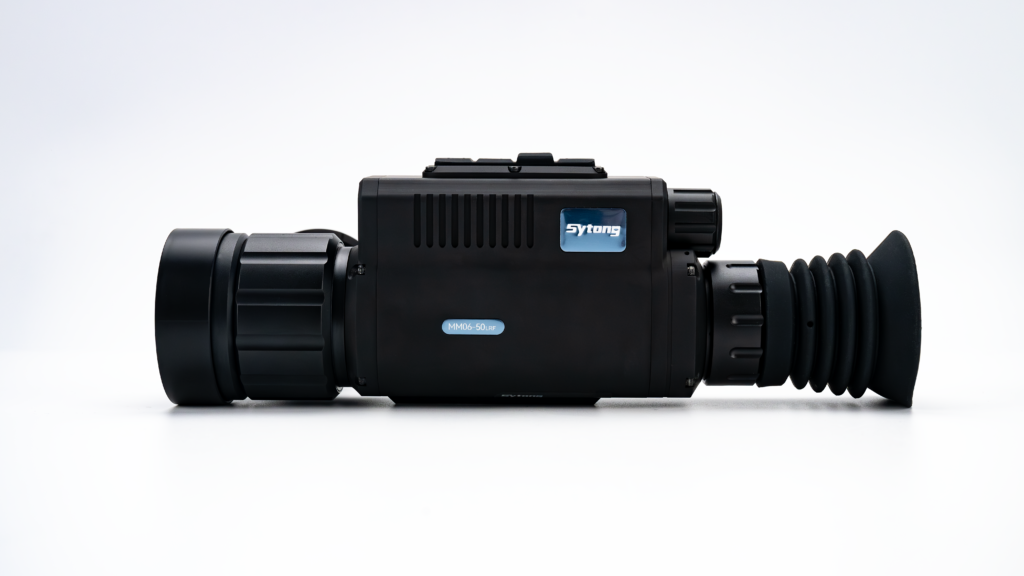

MM06-50LRF
Long-range 50 mm thermal scope — 640×512 sensor, 2500 m detection and laser rangefinder up to 1000 m.
Key Specifications
Sensor: 640×512 / 12μm
NETD: ≤18mK
Lens: 50mm F1.0
Magnification: 2.8X
Detection: 2500m · LRF 1000m
Display: OLED 1024×768
Battery: 5h
Weight: 729.6g · IP67
Reply within 12 hours · OEM / ODM available
Technical Specifications
| Sensor type | Uncooled VOx |
| Resolution | 640×512 |
| Pixel size | 12μm |
| Frame rate | 50Hz |
| NETD | ≤18mK |
| Objective lens | 50mm F1.0 |
| Field of view | 8.8° x 6.6° |
| Magnification | 2.8X |
| Digital zoom | 1x / 2x / 4x / 8x |
| Detection range | 2500m (target 1.7m x 0.5m) |
| Laser rangefinder | 905nm, up to 1000m, ±1m |
| Display | 0.39 inch OLED 1024×768 |

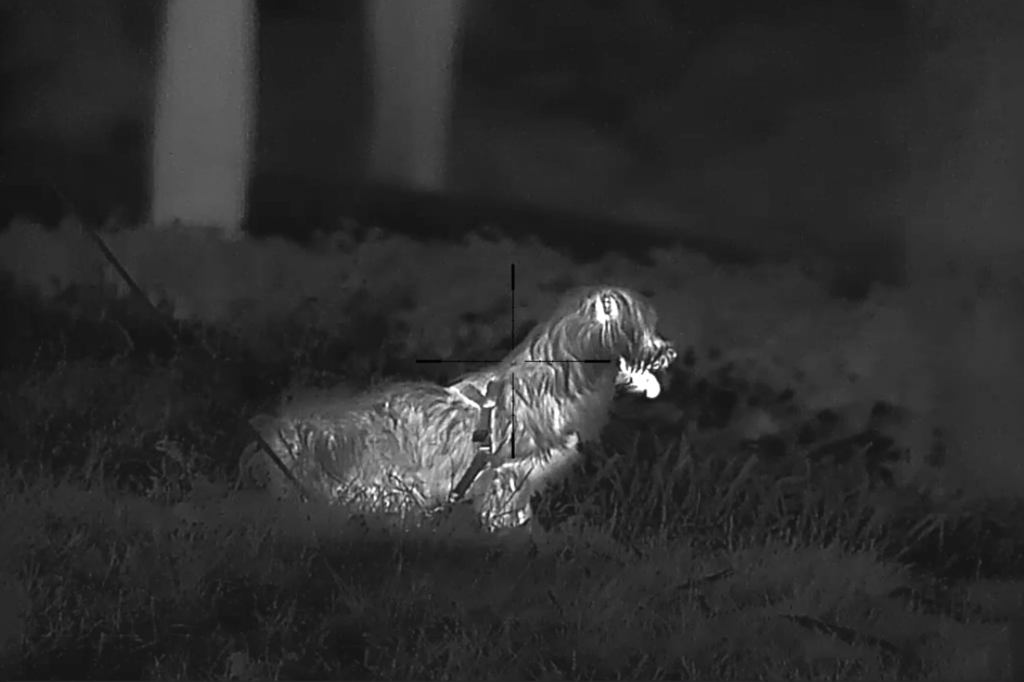

| Image modes | White hot / Black hot / Low light / High contrast / Fusion |
| 3D gyroscope | Yes |
| Battery | 18650 / 3500mAh |
| Battery life | 5 hours |
| Storage | Built-in 32GB |
| Video / photo | 1024×768, mp4 / jpg |
| Weight | 729.6g |
| Dimensions | 248.7 x 74.55 x 82.6mm |
| Shock resistance | 10000J |
| Protection | IP67 |
