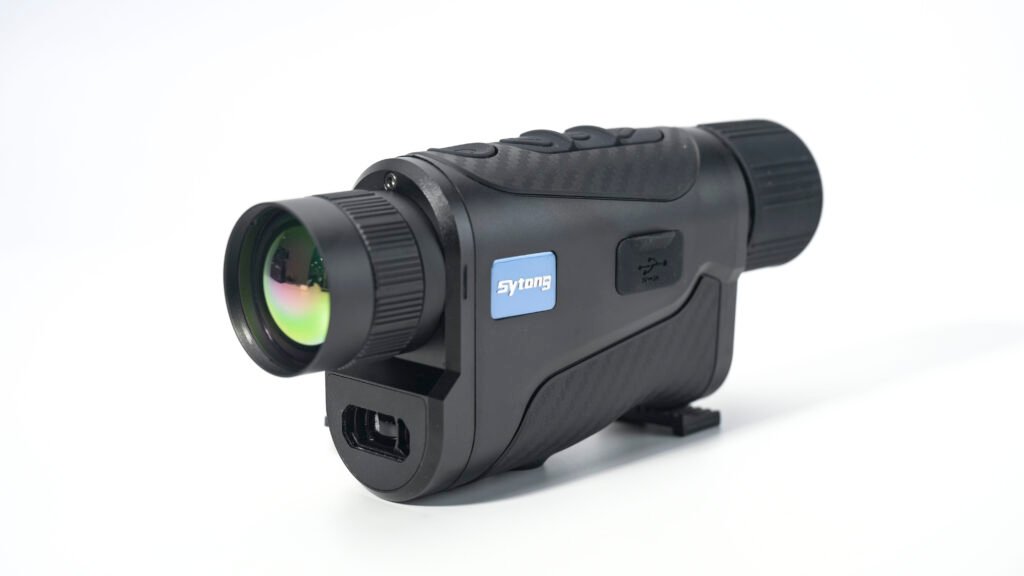

XS2.0-635L
Lightweight 640×512 thermal monocular — a 435 g body with 1750 m detection range and built-in laser rangefinder.
Key Specifications
Sensor: 640×512 / 12μm
NETD: ≤18mK
Lens: 35mm F1.0
Magnification: 2.0X
Detection: 1750m · LRF 1000m
Display: OLED 1024×768
Battery: 5h
Weight: 435g · IP67
Reply within 12 hours · OEM / ODM available
Technical Specifications
| Sensor type | Uncooled VOx |
| Resolution | 640×512 |
| Pixel size | 12μm |
| Frame rate | 50Hz |
| NETD | ≤18mK |
| Objective lens | 35mm F1.0 |
| Field of view | 12.5° x 9.4° |
| Magnification | 2X |
| Digital zoom | 1x / 2x / 4x / 8x |
| Detection range | 1750m (target 1.7m x 0.5m) |
| Laser rangefinder | 905nm, up to 1000m, ±1m |
| Display | 0.39 inch OLED 1024×768 |
| Image modes | White hot / Black hot / Low light / High light / Fusion |
| Battery | 18650 Li-ion 3500mAh |
| Battery life | 5 hours |
| Storage | Built-in 32GB |
| Video / photo | 1024×768, mp4 / jpg |
| Weight | 435g |
| Dimensions | 176 x 46.5 x 82.9mm |
| Operating temperature | -20°C ~ +50°C |
| Protection | IP67 |
